ATC-GP7V8C90 (746-870 MHz 90° Sector Panel, 14.9 dBd)

Get a Quote
Download Product Datasheet Get Product Data Files
View product using our Public Safety Antenna Selector tool

Electrical Specifications

Frequency Range
746-870 MHz
Gain
14.9 dBd (17.0 dBi)
Nominal Impedance
50 Ω Ω
VSWR
<1.5 (13.98 dB)
Passive IM 3rd Order (2x20W)
-150 dBc
Peak Instantaneous Power
25 kW
Power Input
500 W

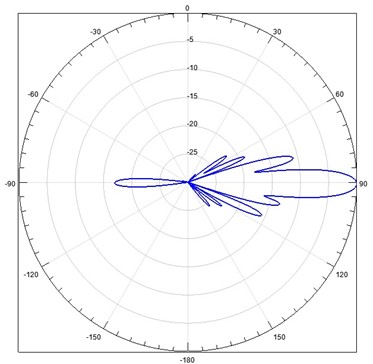

Vertical Beamwidth
8.5°

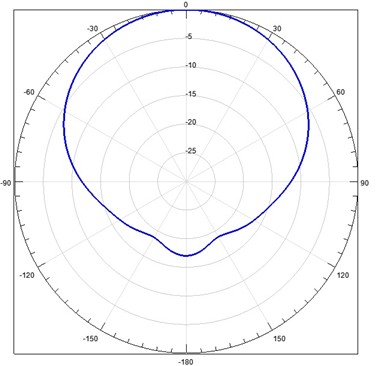

Horzontal Beamwidth
90°

Mechanical Specifications

Weight (lbs)
52 lbs
Dimensions (in)
10.50 x 10.00 x 97.20
Windload
6.38 ft^2

Product Data Files

Download ADF Datasheet: ATC-GP7V8C90.adf
