ATC-GP7V8C120 (746-870 MHz 120° Sector Panel, 13.2 dBd)

Get a Quote
Download Product Datasheet Get Product Data Files
View product using our Public Safety Antenna Selector tool

Electrical Specifications

Frequency Range
746-870 MHz
Gain
13.2 dBd (15.3 dB)
Nominal Impedance
50 Ω Ω
VSWR
<1.5 (13.98 dB)
Passive IM 3rd Order (2x20W)
-150 dBc
Peak Instantaneous Power
25 kW
Power Input
500 W

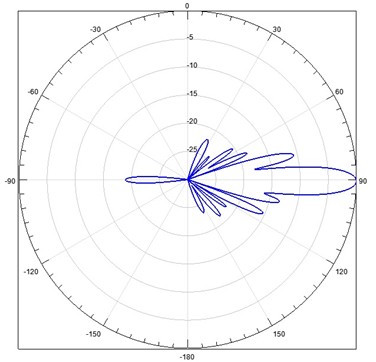

Vertical Beamwidth
8.3°

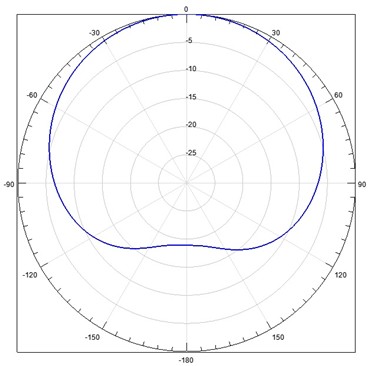

Horzontal Beamwidth
120°

Mechanical Specifications

Weight (lbs)
52 lbs
Dimensions (in)
10.50 x 10.00 x 97.20
Windload
6.38 ft^2
