ATC-GP7V4C90 (746-870 MHz Sector 90° Panel, 11.9 dBd)

Get a Quote
Download Product Datasheet Get Product Data Files
View product using our Public Safety Antenna Selector tool

Electrical Specifications

Frequency Range
746-870 MHz
Gain
11.9 dBd (14.0 dBi)
Nominal Impedance
50 Ω Ω
VSWR
<1.5 (13.98 dB)
Passive IM 3rd Order (2x20W)
-150 dBc
Peak Instantaneous Power
25 kW
Power Input
500 W

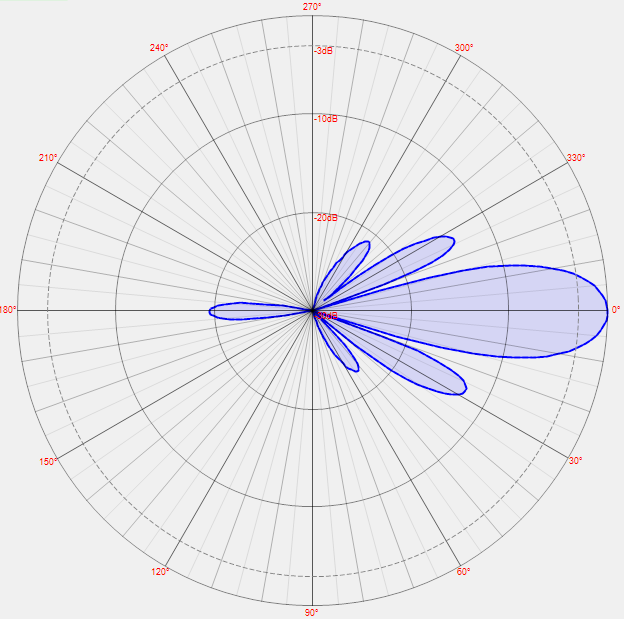

Vertical Beamwidth
16°

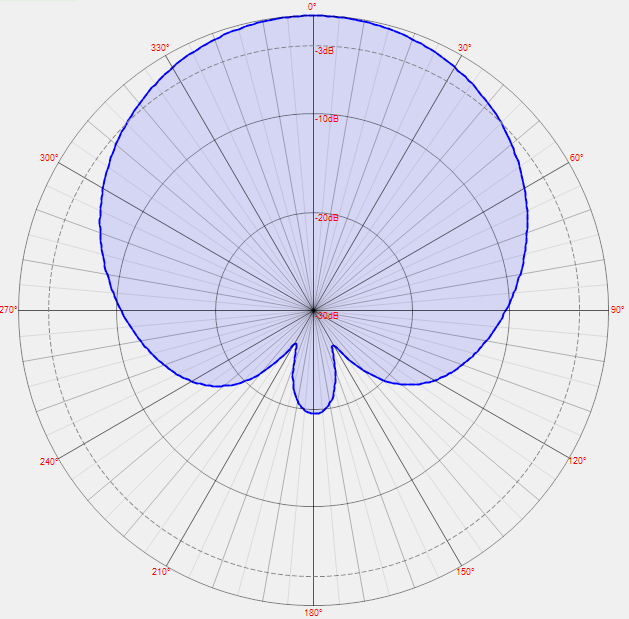

Horzontal Beamwidth
90°

Mechanical Specifications

Weight (lbs)
25.99 lbs
Dimensions (in)
10.50 x 10.00 x 48.59
Windload
3.19 ft^2
