ATC-GP7V4C65 (746-870 MHz Sector 65° Panel, 12.9 dBd)

Get a Quote
Download Product Datasheet Get Product Data Files
View product using our Public Safety Antenna Selector tool

Electrical Specifications

Frequency Range
746-870 MHz
Gain
12.9 dBd (15.0 dBi)
Nominal Impedance
50 Ω Ω
VSWR
<1.5 (13.98 dB)
Passive IM 3rd Order (2x20W)
-150 dBc
Peak Instantaneous Power
25 kW
Power Input
500 W

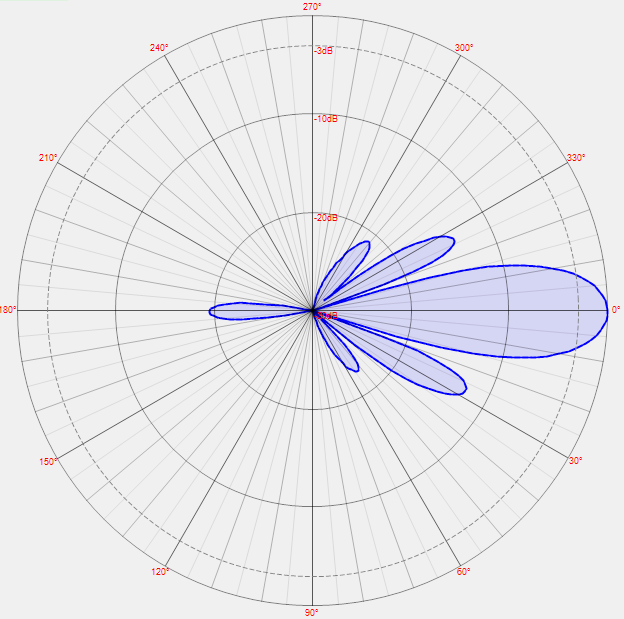

Vertical Beamwidth
16.2°

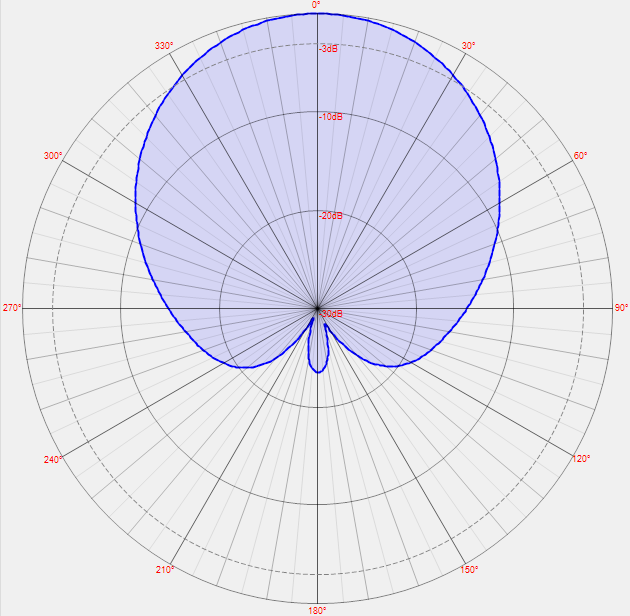

Horzontal Beamwidth
65°

Mechanical Specifications

Weight (lbs)
28.25 lbs
Dimensions (in)
10.50 x 10.00 x 48.59
Windload
3.19 ft^2
