ATC-GC2V4O (217- 226 MHz COLLINEAR DIPOLE 6 dBd)


Electrical Specifications

Frequency Range
217- 226 MHz
Gain
6 dbd
Nominal Impedance
50 Ω
VSWR
< 1.5:1 (14dBd)
Passive IM 3rd Order (2x20W)
-150 dBc
Peak Instantaneous Power
25 kW
Power Input
500 w

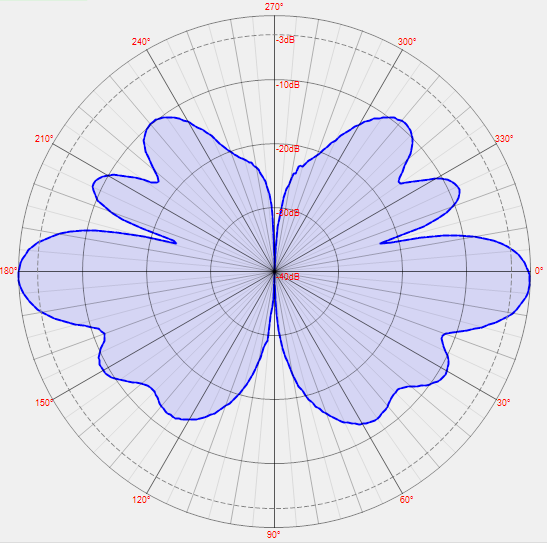

Vertical Beamwidth
20˚
Horzontal Beamwidth
Omni +/-0.5dB

Mechanical Specifications

Weight (lbs)
60
Dimensions (in)
3.00 x 3.00 x 187.00
