ATC-GD2V1C (210- 252 MHz DIPOLE DIRECTIONAL 2 dBd)


Electrical Specifications

Frequency Range
210-252 MHz
Gain
2 dBd
Nominal Impedance
50 Ω
VSWR
< 1.5:1 (14 dBd)
Passive IM 3rd Order (2x20W)
-150 dBc
Peak Instantaneous Power
25 kW
Power Input
500 W

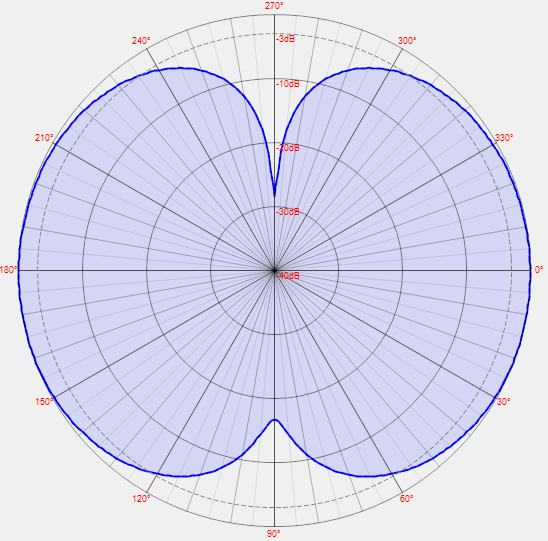

Vertical Beamwidth
78˚

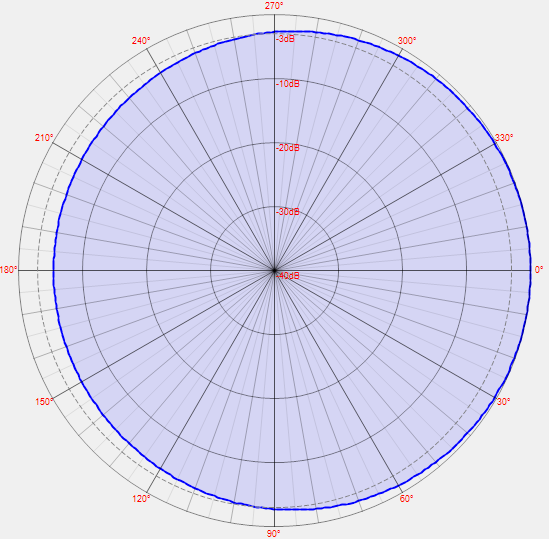

Horzontal Beamwidth
160˚

Mechanical Specifications

Weight (lbs)
8
Dimensions (in)
4.00 x 24.00 x 24.00
