ATC-GC2V1O (217- 225 MHz COLLINEAR DIPOLE OMNI 0dBd)


Electrical Specifications

Frequency Range
217- 225 MHz
Gain
0 dBd
Nominal Impedance
50 Ω
VSWR
< 1.5:1 (14 dB)
Passive IM 3rd Order (2x20W)
-150 dBc
Peak Instantaneous Power
25 kW
Power Input
500 W

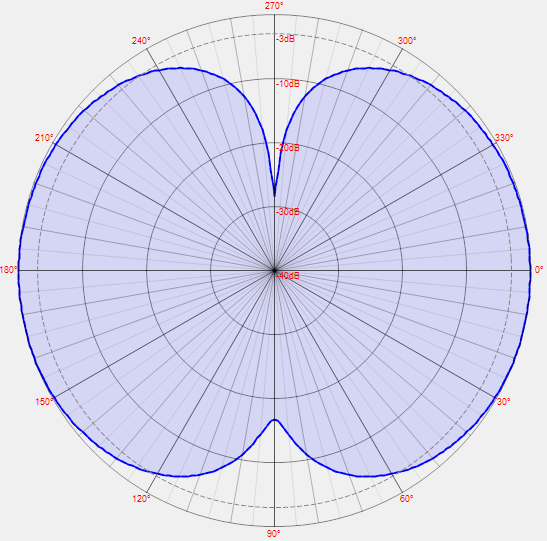

Vertical Beamwidth
80⁰
Horzontal Beamwidth
Omni +/-0.5 dB

Mechanical Specifications

Weight (lbs)
7
Dimensions (in)
3.00 x 3.00 x 47.00
