ATC-GP2V1C1 (205-250 MHz DIPOLE DIRECTIONAL 7.5 dBd)


Electrical Specifications

Frequency Range
205-250
Gain
7.5
Nominal Impedance
50 Ω
VSWR
<1.5:1
Peak Instantaneous Power
25
Power Input
500

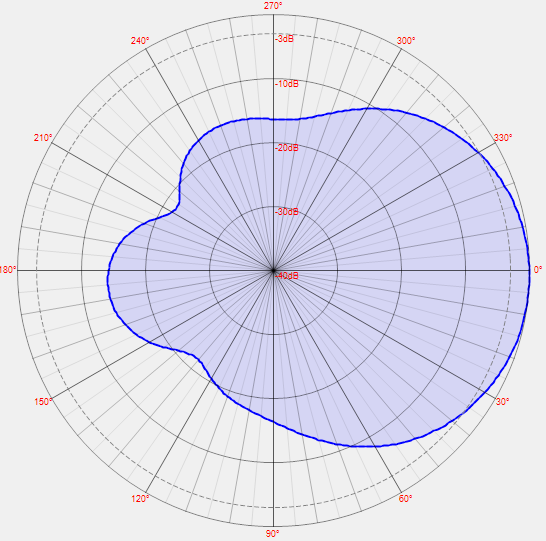

Vertical Beamwidth
66

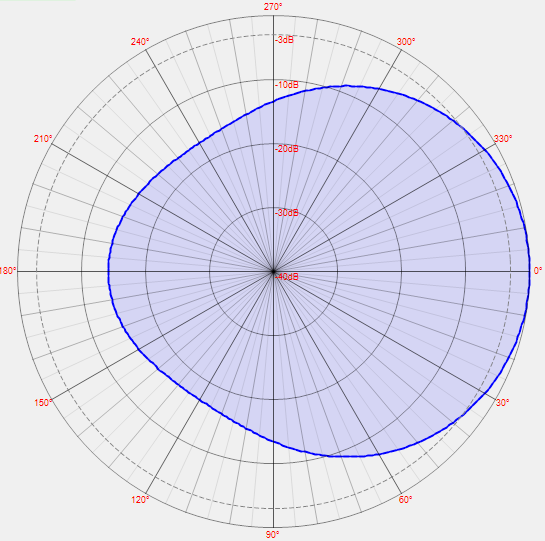

Horzontal Beamwidth
84

Mechanical Specifications

Weight (lbs)
34
Dimensions (in)
3.00 x 50.00 x 40.00
