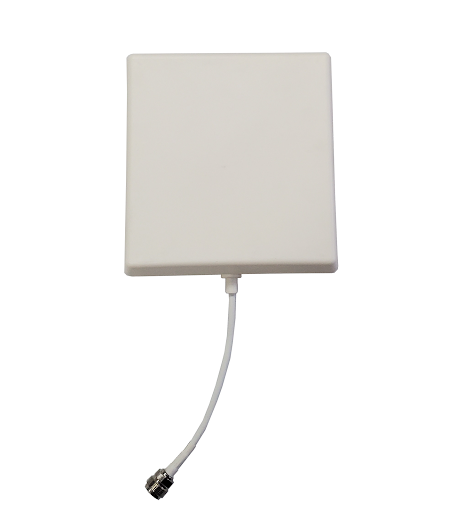

ATC-7IC (700/800 MHz / PCS / AWS Directional DAS Antenna, PIM Rated)

Get a Quote
Download Product Datasheet

Electrical Specifications

Frequency Range
698-960 MHz / 1695-2700 MHz
Gain
6 / 9 dBi
Nominal Impedance
50 Ω Ω
VSWR
<1.5:1
Passive IM 3rd Order (2x20W)
-150 dBc
Power Input
50 W

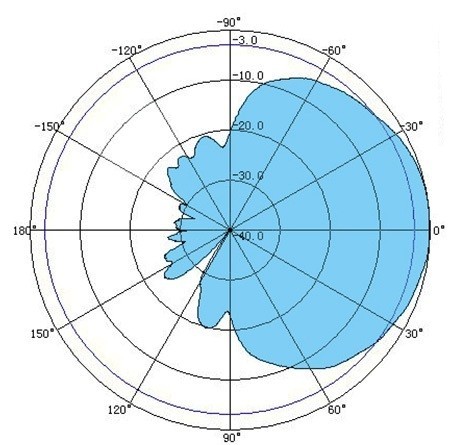

Vertical Beamwidth
75° / 55°

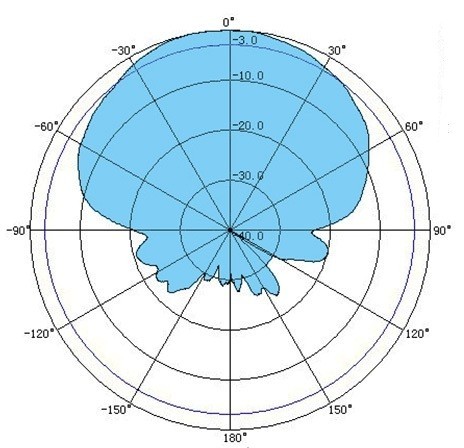

Horzontal Beamwidth
90° / 75°

Mechanical Specifications

Weight (lbs)
0.75 lbs
Dimensions (in)
2.00 x 6.00 x 6.50
Windload
0.28 Sq Ft
