ATC-7IO (700/800 MHz / PCS / AWS DAS Omni Antenna)

Get a Quote
Download Product Datasheet

Electrical Specifications

Frequency Range
698-960 MHz / 1695-2700 MHz
Gain
2 / 5 dBi
Nominal Impedance
50 Ω
VSWR
≤1.7 / ≤1.5
Passive IM 3rd Order (2x20W)
-150 dBc
Power Input
50 W

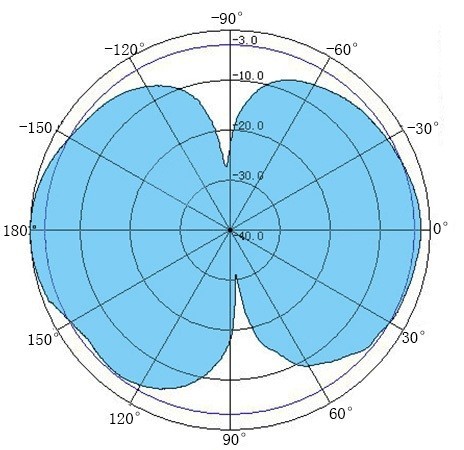

Vertical Beamwidth
80° / 50°

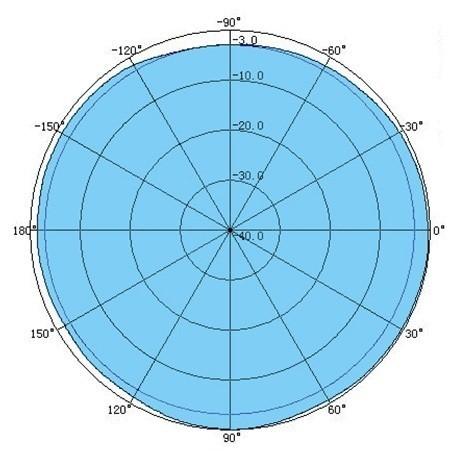

Horzontal Beamwidth
Omni +/-0.5dB

Mechanical Specifications

Weight (lbs)
0.5 lbs
Dimensions (in)
3.35 x 7.25 x 7.25
Windload
1.0 Sq Ft
