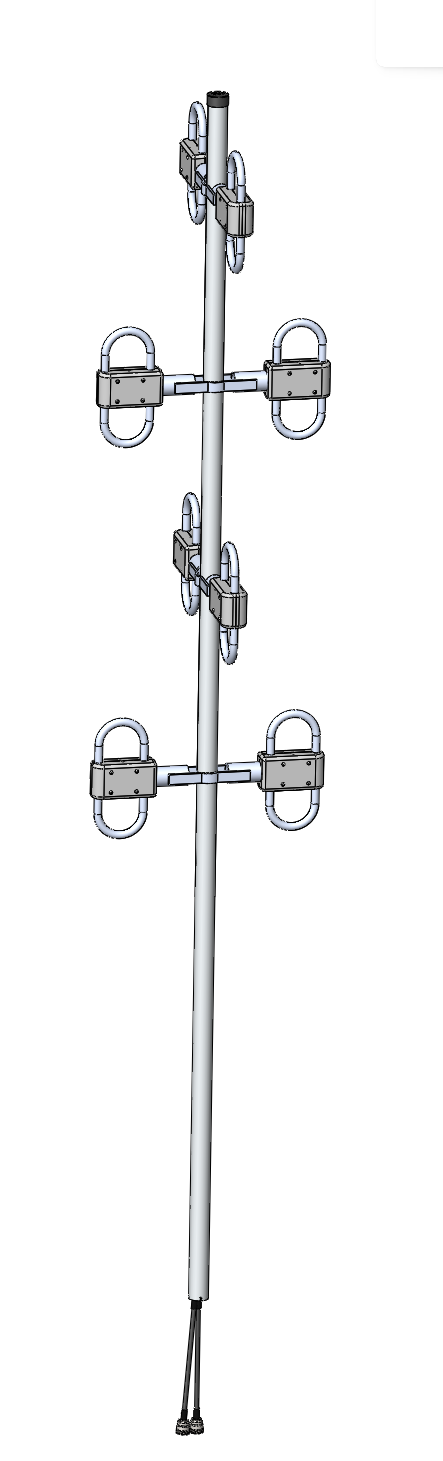

ATC-GD4V2O2O (400-520 MHz UHF Omni Exposed Dipole Dual Antenna, 3 dBd per input)

Get a Quote
Download Product Datasheet Get Product Data Files
View product using our Public Safety Antenna Selector tool

Electrical Specifications

Frequency Range
400-520 MHz
Gain
3 dBd per input
Nominal Impedance
50Ω Ω
VSWR
<1.5:1
Passive IM 3rd Order (2x20W)
-150 dBc
Peak Instantaneous Power
25 kW
Power Input
500 W

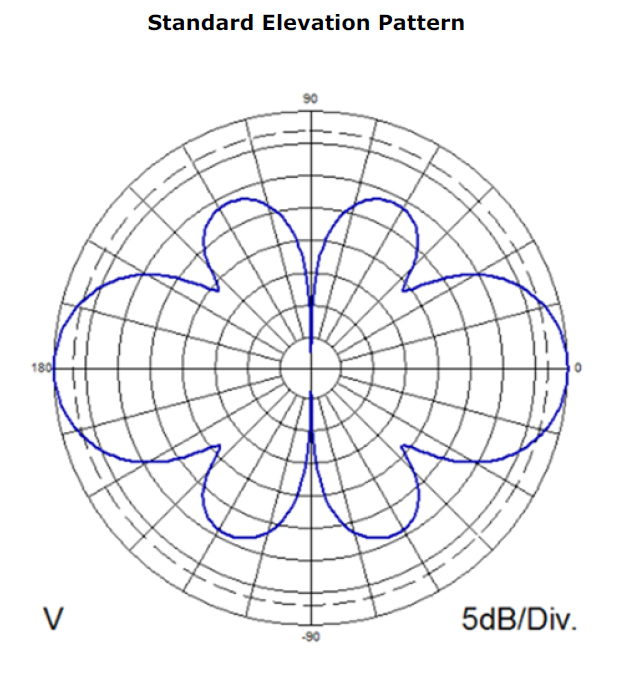

Vertical Beamwidth
2 x 30°
Horzontal Beamwidth
Omni +/- 0.5 dB

Mechanical Specifications

Weight (lbs)
23 lbs
Dimensions (in)
118.00
Windload
1.9 Sq Ft

Product Data Files

Download ADF Datasheet: ATC-GD4V2O2O.adf

Related Products: Exposed Dipole Series, UHF Omni

ATC Part
Description
ATC-GD3V2O
330-420MHz UHF OMNI EXPOSED DIPOLE ANTENNA, 3dBd Gain
ATC-GD3V4O
330-420MHz UHF OMNI EXPOSED DIPOLE ANTENNA, 6dBd Gain
ATC-GD3V8O
330-420 MHz UHF OMNI EXPOSED DIPOLE ANTENNA, 9 dBd Gain
ATC-GD4V2O
400-520MHz UHF OMNI EXPOSED DIPOLE ANTENNA, 3dBd Gain
ATC-GD4V2O-D
400-520MHz UHF OMNI EXPOSED DIPOLE ANTENNA, 2.3dBd Gain
ATC-GD4V2O-Q
400-520MHz UHF QUAD OMNI EXPOSED DIPOLE ANTENNA, 3/3dBd Gain
ATC-GD4V4O
400-520MHz UHF OMNI EXPOSED DIPOLE ANTENNA, 6dBd Gain
ATC-GD4V4O-D
400-520MHz UHF OMNI EXPOSED DIPOLE ANTENNA, 2X6dBd Gain
ATC-GD4V4O-D2
Dual 420- 520 MHz UHF OMNI EXPOSED DIPOLE ANTENNA 6 dBd
ATC-GD4V8O
400-520MHz UHF OMNI EXPOSED DIPOLE ANTENNA, 9dBd Gain
